RTPSink Class Referenceabstract

#include <RTPSink.hh>

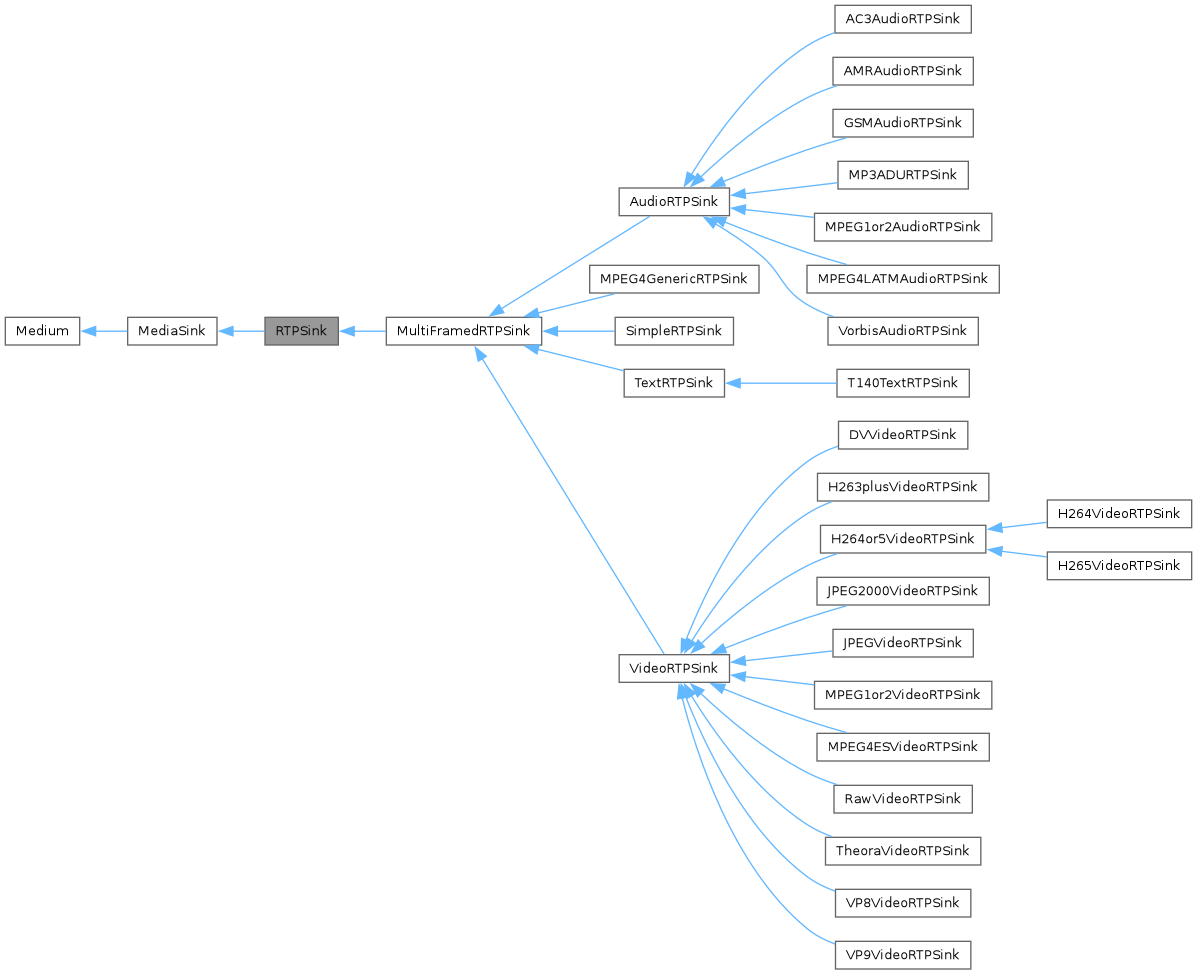

Inheritance diagram for RTPSink:
Inheritance graph
[legend]

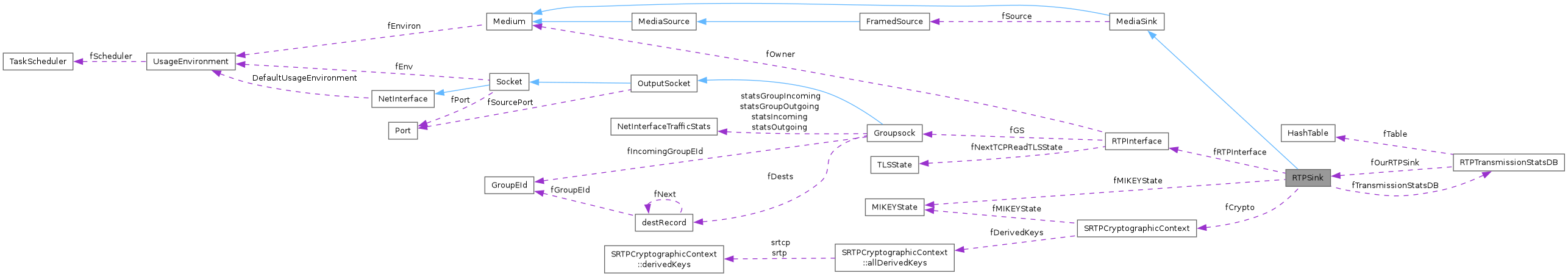

Collaboration diagram for RTPSink:
Collaboration graph
[legend]

Public Types

typedef void() afterPlayingFunc(void *clientData)


Public Member Functions

Groupsock const & groupsockBeingUsed () const

GroupsockgroupsockBeingUsed ()

unsigned char rtpPayloadType () const

unsigned rtpTimestampFrequency () const

void setRTPTimestampFrequency (unsigned freq)

char const * rtpPayloadFormatName () const

unsigned numChannels () const

void setupForSRTP ()

u_int8_t * setupForSRTP (unsigned &resultMIKEYStateMessageSize)

void setupForSRTP (u_int8_t const *MIKEYStateMessage, unsigned MIKEYStateMessageSize)

virtual char const * sdpMediaType () const

virtual char * rtpmapLine () const

virtual char * keyMgmtLine ()

virtual char const * auxSDPLine ()

u_int16_t currentSeqNo () const

u_int32_t presetNextTimestamp ()

RTPTransmissionStatsDBtransmissionStatsDB () const

Boolean nextTimestampHasBeenPreset () const

BooleanenableRTCPReports ()

void getTotalBitrate (unsigned &outNumBytes, double &outElapsedTime)

struct timeval const & creationTime () const

struct timeval const & initialPresentationTime () const

struct timeval const & mostRecentPresentationTime () const

void resetPresentationTimes ()

void setStreamSocket (int sockNum, unsigned char streamChannelId, TLSState *tlsState)

void addStreamSocket (int sockNum, unsigned char streamChannelId, TLSState *tlsState)

void removeStreamSocket (int sockNum, unsigned char streamChannelId)

unsigned & estimatedBitrate ()

u_int32_t SSRC () const

SRTPCryptographicContextgetCrypto () const

Boolean startPlaying (MediaSource &source, afterPlayingFunc *afterFunc, void *afterClientData)

virtual void stopPlaying ()

FramedSourcesource () const

UsageEnvironmentenvir () const

char const * name () const

virtual Boolean isSource () const

virtual Boolean isRTCPInstance () const

virtual Boolean isRTSPClient () const

virtual Boolean isRTSPServer () const

virtual Boolean isMediaSession () const

virtual Boolean isServerMediaSession () const


Static Public Member Functions

static Boolean lookupByName (UsageEnvironment &env, char const *sinkName, RTPSink *&resultSink)

static Boolean lookupByName (UsageEnvironment &env, char const *sinkName, MediaSink *&resultSink)

static Boolean lookupByName (UsageEnvironment &env, char const *mediumName, Medium *&resultMedium)

static void close (UsageEnvironment &env, char const *mediumName)

static void close (Medium *medium)


Protected Member Functions

 RTPSink (UsageEnvironment &env, Groupsock *rtpGS, unsigned char rtpPayloadType, u_int32_t rtpTimestampFrequency, char const *rtpPayloadFormatName, unsigned numChannels)

virtual ~RTPSink ()

u_int32_t convertToRTPTimestamp (struct timeval tv)

unsigned packetCount () const

unsigned octetCount () const

virtual Boolean sourceIsCompatibleWithUs (MediaSource &source)

virtual Boolean continuePlaying ()=0

void onSourceClosure ()

TaskTokennextTask ()


Static Protected Member Functions

static void onSourceClosure (void *clientData)


Protected Attributes

RTPInterface fRTPInterface

unsigned char fRTPPayloadType

unsigned fPacketCount

unsigned fOctetCount

unsigned fTotalOctetCount

struct timeval fTotalOctetCountStartTime fInitialPresentationTime fMostRecentPresentationTime

u_int32_t fCurrentTimestamp

u_int16_t fSeqNo

MIKEYStatefMIKEYState

SRTPCryptographicContextfCrypto

FramedSourcefSource


Private Member Functions

virtual Boolean isRTPSink () const

virtual Boolean isSink () const


Private Attributes

u_int32_t fSSRC

u_int32_t fTimestampBase

unsigned fTimestampFrequency

Boolean fNextTimestampHasBeenPreset

Boolean fEnableRTCPReports

char const * fRTPPayloadFormatName

unsigned fNumChannels

struct timeval fCreationTime

unsigned fEstimatedBitrate

RTPTransmissionStatsDBfTransmissionStatsDB

afterPlayingFuncfAfterFunc

void * fAfterClientData

UsageEnvironmentfEnviron

char fMediumName [mediumNameMaxLen]

TaskToken fNextTask


Friends

class RTCPInstance

class RTPTransmissionStats


Detailed Description

Definition at line 36 of file RTPSink.hh.

Member Typedef Documentation

◆ afterPlayingFunc

typedef void() MediaSink::afterPlayingFunc(void *clientData)
inherited

Definition at line 33 of file MediaSink.hh.

Constructor & Destructor Documentation

◆ RTPSink()

RTPSink::RTPSink ( UsageEnvironment env,
Groupsock rtpGS,
unsigned char  rtpPayloadType,
u_int32_t  rtpTimestampFrequency,
char const *  rtpPayloadFormatName,
unsigned  numChannels
)
protected

◆ ~RTPSink()

virtual RTPSink::~RTPSink ( )
protectedvirtual

Member Function Documentation

◆ addStreamSocket()

void RTPSink::addStreamSocket ( int  sockNum,
unsigned char  streamChannelId,
TLSState tlsState
)
inline

Definition at line 92 of file RTPSink.hh.

92  {
93  fRTPInterface.addStreamSocket(sockNum, streamChannelId, tlsState);
94  }
void addStreamSocket(int sockNum, unsigned char streamChannelId, TLSState *tlsState)
RTPInterface fRTPInterface
Definition: RTPSink.hh:123

References RTPInterface::addStreamSocket(), and fRTPInterface.

◆ auxSDPLine()

virtual char const* RTPSink::auxSDPLine ( )
virtual

◆ close() [1/2]

static void Medium::close ( Medium medium)
staticinherited

◆ close() [2/2]

static void Medium::close ( UsageEnvironment env,
char const *  mediumName
)
staticinherited

◆ continuePlaying()

virtual Boolean MediaSink::continuePlaying ( )
protectedpure virtualinherited

◆ convertToRTPTimestamp()

u_int32_t RTPSink::convertToRTPTimestamp ( struct timeval  tv)
protected

◆ creationTime()

struct timeval const& RTPSink::creationTime ( ) const
inline

Definition at line 83 of file RTPSink.hh.

83 { return fCreationTime; }
struct timeval fCreationTime
Definition: RTPSink.hh:145

References fCreationTime.

◆ currentSeqNo()

u_int16_t RTPSink::currentSeqNo ( ) const
inline

Definition at line 67 of file RTPSink.hh.

67 { return fSeqNo; }
u_int16_t fSeqNo
Definition: RTPSink.hh:128

References fSeqNo.

◆ enableRTCPReports()

Boolean& RTPSink::enableRTCPReports ( )
inline

Definition at line 77 of file RTPSink.hh.

77 { return fEnableRTCPReports; }
Boolean fEnableRTCPReports
Definition: RTPSink.hh:142

References fEnableRTCPReports.

◆ envir()

UsageEnvironment& Medium::envir ( ) const
inlineinherited

◆ estimatedBitrate()

unsigned& RTPSink::estimatedBitrate ( )
inline

Definition at line 98 of file RTPSink.hh.

98 { return fEstimatedBitrate; } // kbps; usually 0 (i.e., unset)
unsigned fEstimatedBitrate
Definition: RTPSink.hh:146

References fEstimatedBitrate.

◆ getCrypto()

SRTPCryptographicContext* RTPSink::getCrypto ( ) const
inline

Definition at line 103 of file RTPSink.hh.

103 { return fCrypto; }
SRTPCryptographicContext * fCrypto
Definition: RTPSink.hh:132

References fCrypto.

◆ getTotalBitrate()

void RTPSink::getTotalBitrate ( unsigned &  outNumBytes,
double &  outElapsedTime
)

◆ groupsockBeingUsed() [1/2]

Groupsock& RTPSink::groupsockBeingUsed ( )
inline

Definition at line 43 of file RTPSink.hh.

43 { return *(fRTPInterface.gs()); }
Groupsock * gs() const
Definition: RTPInterface.hh:51

References fRTPInterface, and RTPInterface::gs().

◆ groupsockBeingUsed() [2/2]

Groupsock const& RTPSink::groupsockBeingUsed ( ) const
inline

Definition at line 42 of file RTPSink.hh.

42 { return *(fRTPInterface.gs()); }

References fRTPInterface, and RTPInterface::gs().

◆ initialPresentationTime()

struct timeval const& RTPSink::initialPresentationTime ( ) const
inline

Definition at line 84 of file RTPSink.hh.

84 { return fInitialPresentationTime; }

◆ isMediaSession()

virtual Boolean Medium::isMediaSession ( ) const
virtualinherited

Reimplemented in MediaSession.

◆ isRTCPInstance()

virtual Boolean Medium::isRTCPInstance ( ) const
virtualinherited

Reimplemented in RTCPInstance.

◆ isRTPSink()

virtual Boolean RTPSink::isRTPSink ( ) const
privatevirtual

Reimplemented from MediaSink.

◆ isRTSPClient()

virtual Boolean Medium::isRTSPClient ( ) const
virtualinherited

Reimplemented in RTSPClient.

◆ isRTSPServer()

virtual Boolean Medium::isRTSPServer ( ) const
virtualinherited

Reimplemented in RTSPServer.

◆ isServerMediaSession()

virtual Boolean Medium::isServerMediaSession ( ) const
virtualinherited

Reimplemented in ServerMediaSession.

◆ isSink()

virtual Boolean MediaSink::isSink ( ) const
privatevirtualinherited

Reimplemented from Medium.

◆ isSource()

virtual Boolean Medium::isSource ( ) const
virtualinherited

Reimplemented in MediaSource.

◆ keyMgmtLine()

virtual char* RTPSink::keyMgmtLine ( )
virtual

◆ lookupByName() [1/3]

static Boolean Medium::lookupByName ( UsageEnvironment env,
char const *  mediumName,
Medium *&  resultMedium
)
staticinherited

◆ lookupByName() [2/3]

static Boolean MediaSink::lookupByName ( UsageEnvironment env,
char const *  sinkName,
MediaSink *&  resultSink
)
staticinherited

◆ lookupByName() [3/3]

static Boolean RTPSink::lookupByName ( UsageEnvironment env,
char const *  sinkName,
RTPSink *&  resultSink
)
static

◆ mostRecentPresentationTime()

struct timeval const& RTPSink::mostRecentPresentationTime ( ) const
inline

Definition at line 85 of file RTPSink.hh.

struct timeval fTotalOctetCountStartTime fInitialPresentationTime fMostRecentPresentationTime
Definition: RTPSink.hh:126

References fMostRecentPresentationTime.

◆ name()

char const* Medium::name ( ) const
inlineinherited

Definition at line 61 of file Media.hh.

61 {return fMediumName;}
char fMediumName[mediumNameMaxLen]
Definition: Media.hh:83

References Medium::fMediumName.

◆ nextTask()

TaskToken& Medium::nextTask ( )
inlineprotectedinherited

Definition at line 77 of file Media.hh.

77  {
78  return fNextTask;
79  }
TaskToken fNextTask
Definition: Media.hh:84

References Medium::fNextTask.

◆ nextTimestampHasBeenPreset()

Boolean RTPSink::nextTimestampHasBeenPreset ( ) const
inline

Definition at line 76 of file RTPSink.hh.

Boolean fNextTimestampHasBeenPreset
Definition: RTPSink.hh:141

References fNextTimestampHasBeenPreset.

◆ numChannels()

unsigned RTPSink::numChannels ( ) const
inline

Definition at line 52 of file RTPSink.hh.

52 { return fNumChannels; }
unsigned fNumChannels
Definition: RTPSink.hh:144

References fNumChannels.

◆ octetCount()

unsigned RTPSink::octetCount ( ) const
inlineprotected

Definition at line 120 of file RTPSink.hh.

120 {return fOctetCount;}
unsigned fOctetCount
Definition: RTPSink.hh:125

References fOctetCount.

◆ onSourceClosure() [1/2]

void MediaSink::onSourceClosure ( )
protectedinherited

◆ onSourceClosure() [2/2]

static void MediaSink::onSourceClosure ( void *  clientData)
staticprotectedinherited

◆ packetCount()

unsigned RTPSink::packetCount ( ) const
inlineprotected

Definition at line 119 of file RTPSink.hh.

119 {return fPacketCount;}
unsigned fPacketCount
Definition: RTPSink.hh:125

References fPacketCount.

◆ presetNextTimestamp()

u_int32_t RTPSink::presetNextTimestamp ( )

◆ removeStreamSocket()

void RTPSink::removeStreamSocket ( int  sockNum,
unsigned char  streamChannelId
)
inline

Definition at line 95 of file RTPSink.hh.

95  {
96  fRTPInterface.removeStreamSocket(sockNum, streamChannelId);
97  }
void removeStreamSocket(int sockNum, unsigned char streamChannelId)

References fRTPInterface, and RTPInterface::removeStreamSocket().

◆ resetPresentationTimes()

void RTPSink::resetPresentationTimes ( )

◆ rtpmapLine()

virtual char* RTPSink::rtpmapLine ( ) const
virtual

◆ rtpPayloadFormatName()

char const* RTPSink::rtpPayloadFormatName ( ) const
inline

Definition at line 50 of file RTPSink.hh.

50 {return fRTPPayloadFormatName;}
char const * fRTPPayloadFormatName
Definition: RTPSink.hh:143

References fRTPPayloadFormatName.

◆ rtpPayloadType()

unsigned char RTPSink::rtpPayloadType ( ) const
inline

Definition at line 45 of file RTPSink.hh.

45 { return fRTPPayloadType; }
unsigned char fRTPPayloadType
Definition: RTPSink.hh:124

References fRTPPayloadType.

◆ rtpTimestampFrequency()

unsigned RTPSink::rtpTimestampFrequency ( ) const
inline

Definition at line 46 of file RTPSink.hh.

46 { return fTimestampFrequency; }
unsigned fTimestampFrequency
Definition: RTPSink.hh:140

References fTimestampFrequency.

◆ sdpMediaType()

virtual char const* RTPSink::sdpMediaType ( ) const
virtual

◆ setRTPTimestampFrequency()

void RTPSink::setRTPTimestampFrequency ( unsigned  freq)
inline

Definition at line 47 of file RTPSink.hh.

47  {
48  fTimestampFrequency = freq;
49  }

References fTimestampFrequency.

◆ setStreamSocket()

void RTPSink::setStreamSocket ( int  sockNum,
unsigned char  streamChannelId,
TLSState tlsState
)
inline

Definition at line 89 of file RTPSink.hh.

89  {
90  fRTPInterface.setStreamSocket(sockNum, streamChannelId, tlsState);
91  }
void setStreamSocket(int sockNum, unsigned char streamChannelId, TLSState *tlsState)

References fRTPInterface, and RTPInterface::setStreamSocket().

◆ setupForSRTP() [1/3]

void RTPSink::setupForSRTP ( )

◆ setupForSRTP() [2/3]

void RTPSink::setupForSRTP ( u_int8_t const *  MIKEYStateMessage,
unsigned  MIKEYStateMessageSize
)

◆ setupForSRTP() [3/3]

u_int8_t* RTPSink::setupForSRTP ( unsigned &  resultMIKEYStateMessageSize)

◆ source()

FramedSource* MediaSink::source ( ) const
inlineinherited

Definition at line 42 of file MediaSink.hh.

42 {return fSource;}
FramedSource * fSource
Definition: MediaSink.hh:58

References MediaSink::fSource.

◆ sourceIsCompatibleWithUs()

virtual Boolean MediaSink::sourceIsCompatibleWithUs ( MediaSource source)
protectedvirtualinherited

◆ SSRC()

u_int32_t RTPSink::SSRC ( ) const
inline

Definition at line 100 of file RTPSink.hh.

100 {return fSSRC;}
u_int32_t fSSRC
Definition: RTPSink.hh:139

References fSSRC.

◆ startPlaying()

Boolean MediaSink::startPlaying ( MediaSource source,
afterPlayingFunc afterFunc,
void *  afterClientData
)
inherited

◆ stopPlaying()

virtual void MediaSink::stopPlaying ( )
virtualinherited

Reimplemented in MultiFramedRTPSink.

◆ transmissionStatsDB()

RTPTransmissionStatsDB& RTPSink::transmissionStatsDB ( ) const
inline

Definition at line 72 of file RTPSink.hh.

72  {
73  return *fTransmissionStatsDB;
74  }
RTPTransmissionStatsDB * fTransmissionStatsDB
Definition: RTPSink.hh:148

References fTransmissionStatsDB.

Friends And Related Function Documentation

◆ RTCPInstance

friend class RTCPInstance
friend

Definition at line 116 of file RTPSink.hh.

◆ RTPTransmissionStats

friend class RTPTransmissionStats
friend

Definition at line 117 of file RTPSink.hh.

Field Documentation

◆ fAfterClientData

void* MediaSink::fAfterClientData
privateinherited

Definition at line 67 of file MediaSink.hh.

◆ fAfterFunc

afterPlayingFunc* MediaSink::fAfterFunc
privateinherited

Definition at line 66 of file MediaSink.hh.

◆ fCreationTime

struct timeval RTPSink::fCreationTime
private

Definition at line 144 of file RTPSink.hh.

Referenced by creationTime().

◆ fCrypto

SRTPCryptographicContext* RTPSink::fCrypto
protected

Definition at line 132 of file RTPSink.hh.

Referenced by getCrypto().

◆ fCurrentTimestamp

u_int32_t RTPSink::fCurrentTimestamp
protected

Definition at line 127 of file RTPSink.hh.

◆ fEnableRTCPReports

Boolean RTPSink::fEnableRTCPReports
private

Definition at line 142 of file RTPSink.hh.

Referenced by enableRTCPReports().

◆ fEnviron

UsageEnvironment& Medium::fEnviron
privateinherited

Definition at line 82 of file Media.hh.

Referenced by Medium::envir().

◆ fEstimatedBitrate

unsigned RTPSink::fEstimatedBitrate
private

Definition at line 146 of file RTPSink.hh.

Referenced by estimatedBitrate().

◆ fMediumName

char Medium::fMediumName[mediumNameMaxLen]
privateinherited

Definition at line 83 of file Media.hh.

Referenced by Medium::name().

◆ fMIKEYState

MIKEYState* RTPSink::fMIKEYState
protected

Definition at line 131 of file RTPSink.hh.

◆ fMostRecentPresentationTime

struct timeval fTotalOctetCountStartTime fInitialPresentationTime RTPSink::fMostRecentPresentationTime
protected

Definition at line 125 of file RTPSink.hh.

Referenced by mostRecentPresentationTime().

◆ fNextTask

TaskToken Medium::fNextTask
privateinherited

Definition at line 84 of file Media.hh.

Referenced by Medium::nextTask().

◆ fNextTimestampHasBeenPreset

Boolean RTPSink::fNextTimestampHasBeenPreset
private

Definition at line 141 of file RTPSink.hh.

Referenced by nextTimestampHasBeenPreset().

◆ fNumChannels

unsigned RTPSink::fNumChannels
private

Definition at line 144 of file RTPSink.hh.

Referenced by numChannels().

◆ fOctetCount

unsigned RTPSink::fOctetCount
protected

Definition at line 125 of file RTPSink.hh.

Referenced by octetCount().

◆ fPacketCount

unsigned RTPSink::fPacketCount
protected

Definition at line 125 of file RTPSink.hh.

Referenced by packetCount().

◆ fRTPInterface

RTPInterface RTPSink::fRTPInterface
protected

◆ fRTPPayloadFormatName

char const* RTPSink::fRTPPayloadFormatName
private

Definition at line 143 of file RTPSink.hh.

Referenced by rtpPayloadFormatName().

◆ fRTPPayloadType

unsigned char RTPSink::fRTPPayloadType
protected

Definition at line 124 of file RTPSink.hh.

Referenced by rtpPayloadType().

◆ fSeqNo

u_int16_t RTPSink::fSeqNo
protected

Definition at line 128 of file RTPSink.hh.

Referenced by currentSeqNo().

◆ fSource

FramedSource* MediaSink::fSource
protectedinherited

Definition at line 58 of file MediaSink.hh.

Referenced by MediaSink::source().

◆ fSSRC

u_int32_t RTPSink::fSSRC
private

Definition at line 139 of file RTPSink.hh.

Referenced by SSRC().

◆ fTimestampBase

u_int32_t RTPSink::fTimestampBase
private

Definition at line 139 of file RTPSink.hh.

◆ fTimestampFrequency

unsigned RTPSink::fTimestampFrequency
private

Definition at line 140 of file RTPSink.hh.

Referenced by rtpTimestampFrequency(), and setRTPTimestampFrequency().

◆ fTotalOctetCount

unsigned RTPSink::fTotalOctetCount
protected

Definition at line 125 of file RTPSink.hh.

◆ fTransmissionStatsDB

RTPTransmissionStatsDB* RTPSink::fTransmissionStatsDB
private

Definition at line 148 of file RTPSink.hh.

Referenced by transmissionStatsDB().


The documentation for this class was generated from the following file:
